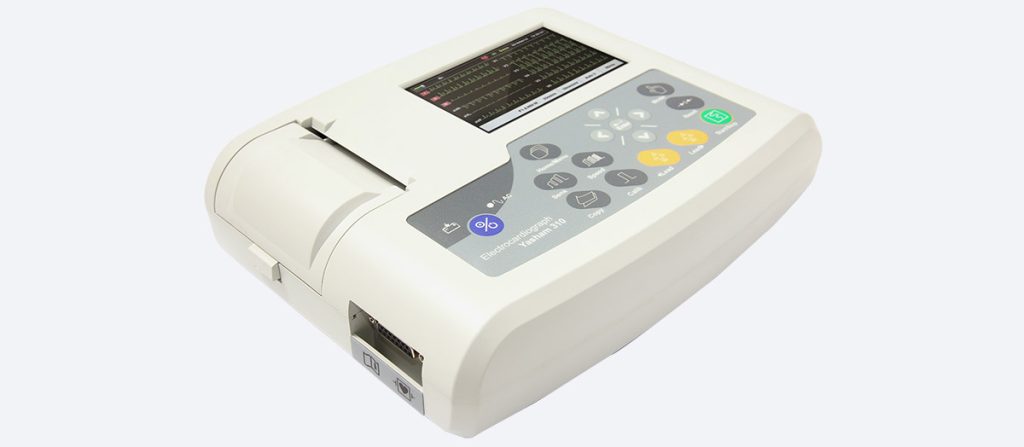

Technical Data Yasham310 -2
.
.
.
Technical Data Yasham310
Technical Data for ECG
Patient input circuit: fully floating and isolated, defibrillation protected
Monitor display
12-channel display or Rhythm
Heart Rate
2.5,5,10,20 mm/mV or Automatic in Auto/Manual Mode
Filter status (Notch, Low-pass,Drift,EMG)
Insufficient electrode contact (Lead- Off)
Leads:12 simultaneous Standard leads
Chart Printout speed: 6.25/12.5/25/50 mm/s
Sensitivities: 2.5/5/10/20 mm/mV, either automatically adjusted or manually selected
Automatic or Manual lead programs:
1/2/3- channel presentations of 12 Simultaneously or Real time recorded leads
1+long Lead/2+long Lead/Rhythm
Data record
Patient data (name, age, height, weight, stature, weight, sex, blood group & heart rate), User ID
Listing of all ECG recording conditions (data, time, filter, speed)
Measurement program: ECG measurement results (intervals, amplitudes, electrical axes) average complexes with measurement markings
Calibration voltage: 1mV3%
Recording track: 1 / 1+1 /2 /1+2/ 3-channel + Rhythm Mod
Filter: Myogram filter:25 or 35 or 75 or150 Hz or Off, Drift: baseline stabilizer, Notch:50/60 Hz
ECG amplifier: Simultaneous recording of all 9 active electrode signals (=12 leads)
Sampling frequency: 1000 Hz
Pacemaker Detection/Rejection:.1ms
System Dimensions: 210*260*65 mm, approx .1.8 kg
Built-in monitor: 65*110 mm effective display aree; 480*800 dots resolution
On-screen status indicators: power source, Battery status, time
Control panel and key board: User-friendly keys, LED indicator, Touchscreen
Power supply requirements: 90- 264 V , 50/60Hz ; stand- alone operation with Built-in rechargeable Li-ion battery, integrated power supply unit
Battery capacity: 8 hours of normal use
Power consumption: 90
Frequency range of digital recording system: 0.05 – 150 Hz (IEC/AHA)
Chart paper: Thermo-sensitive, 63 mm wide
Printing process: High-resolution thermal head printer, 8 dots /mm
Interfaces: USB Interfaces; data transmission to PC; optional Internet interface
Memory: Possibility to save up to 100 Resting ECG measurements internally or SD card (optional)
Environmental conditions
Temperature, operating: 10 C to 40C
Temperature, storage: -10 C to 50C
Relative humidity: 25% to 95% ( no condensaton)
Pressure during operation: 700 to 1060 hpa
Standards
Safety: IEC(EN)60601-1; IEC(EN)60601-1-2(EMC)
Performance: ANSI/AAMI EC11
Perotection class: I according to IEC 60601-1 (with internal power supply)
Applied Part: CF according to IEC 60601-1
Hardware options: Equipment trolley
Optional
USB HOST
USB Device
LAN(RJ-45)
Wifi
SD Card
